Gyru Star

SIMPLY EFFICIENT

THE CONCEPT

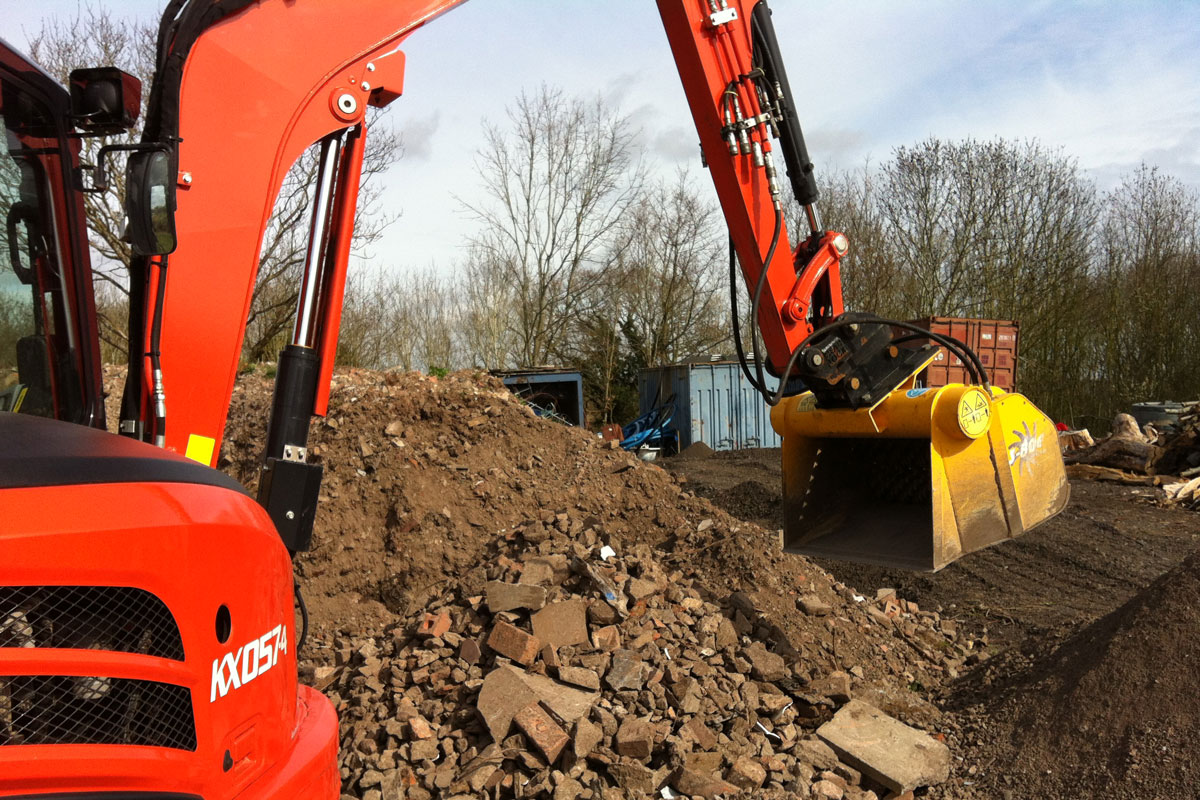

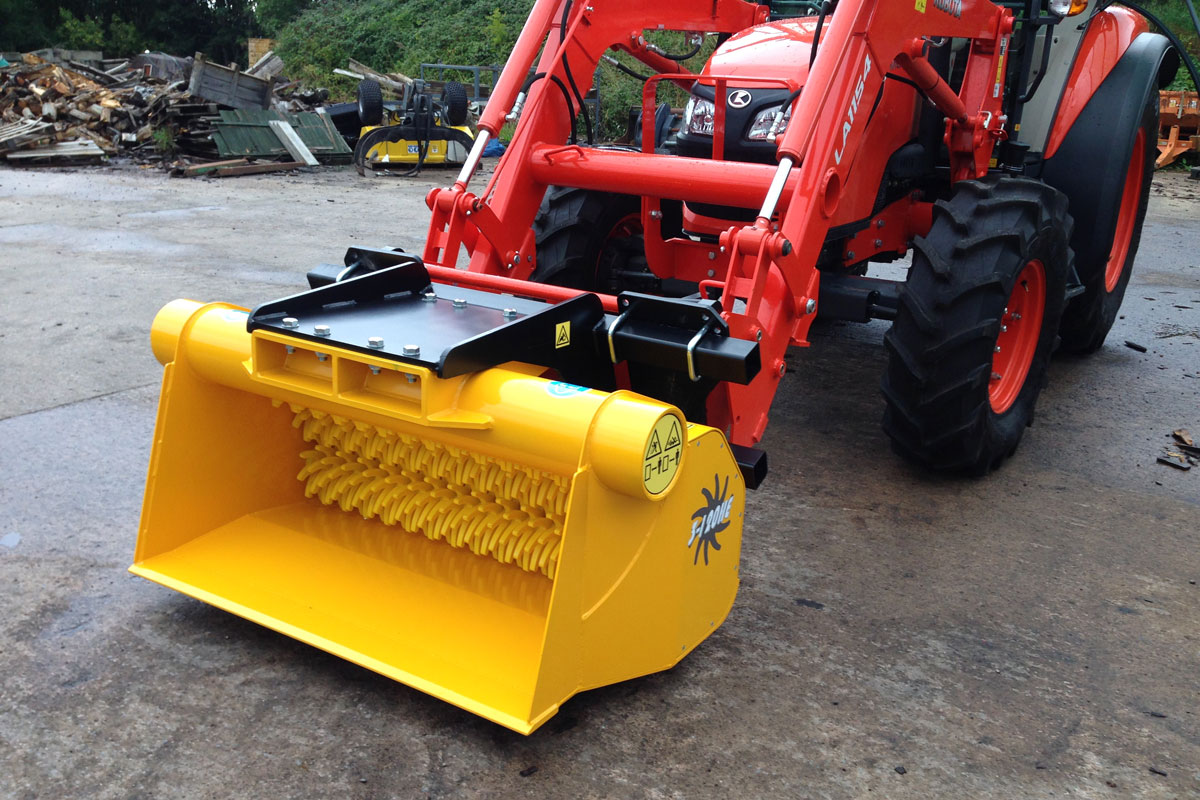

Manufactured in the UK by Wheatway Solutions Ltd, the Gyru Star Compact Screening System is a fast and efficient screening system for soil, aggregates and compost. The unique design utilises flexible poly stars which create a large screening area allowing for maximising output. The Gates carbon belt combined with sealed bearings also make this a low maintenance and cost effective system.

Designed and manufactured in the UK

By Wheatway Solutions Ltd

To suit a range of excavators

From 1 to 20 tonnes

Manufactured using high grade steel

For exceptional durability

Low maintenance

Carbon transmission belts, Rosta tensioning units and sealed bearings for minimum maintenance

Flexible poly stars

Create a fast and efficient self-cleaning screening medium

Environmentally sensitive

Very low environmental impact

Supplied With

Mounting bracket

Hoses excluding QR fittings

Additional Options

N/A

Hydraulic Requirements

1 x Single acting circuit

MODELS & TECH SPEC

Model	Carrier Weight (t)	Weight (kg)	Oil Flow (l/m)	Oil Pressure (bar)	Rotors (nr)	Capacity (l)	Dimensions H x W x D (mm)
2-50E	1 – 2.3	155	40	200	2	50	510 x 720 x 590
3-60E	2 – 4	240	55	200	3	120	640 x 810 x 760
3-80E	3 – 5	290	55	200	3	172	640 x 1010 x 760
3-100E	4 – 6	360	65	200	3	215	640 x 1250 x 760
3-120HE	5 – 7	405	65	200	3	258	640 x 1410 x 760
3-150HE	7 – 10	600	70	200	3	323	640 x 1870 x 760
4-100HE	5 – 8	560	90	200	4	350	880 x 1350 x 820
4-120HE	10 – 14	600	90	200	4	421	880 x 1550 x 820
4-150HE	13 – 16	780	90	200	4	527	880 x 1870 x 820
6-150HE	16 – 20	1020	160	200	6	950	1300 x 1870 x 1340
