Tree Lopper

A CUT ABOVE

THE CONCEPT

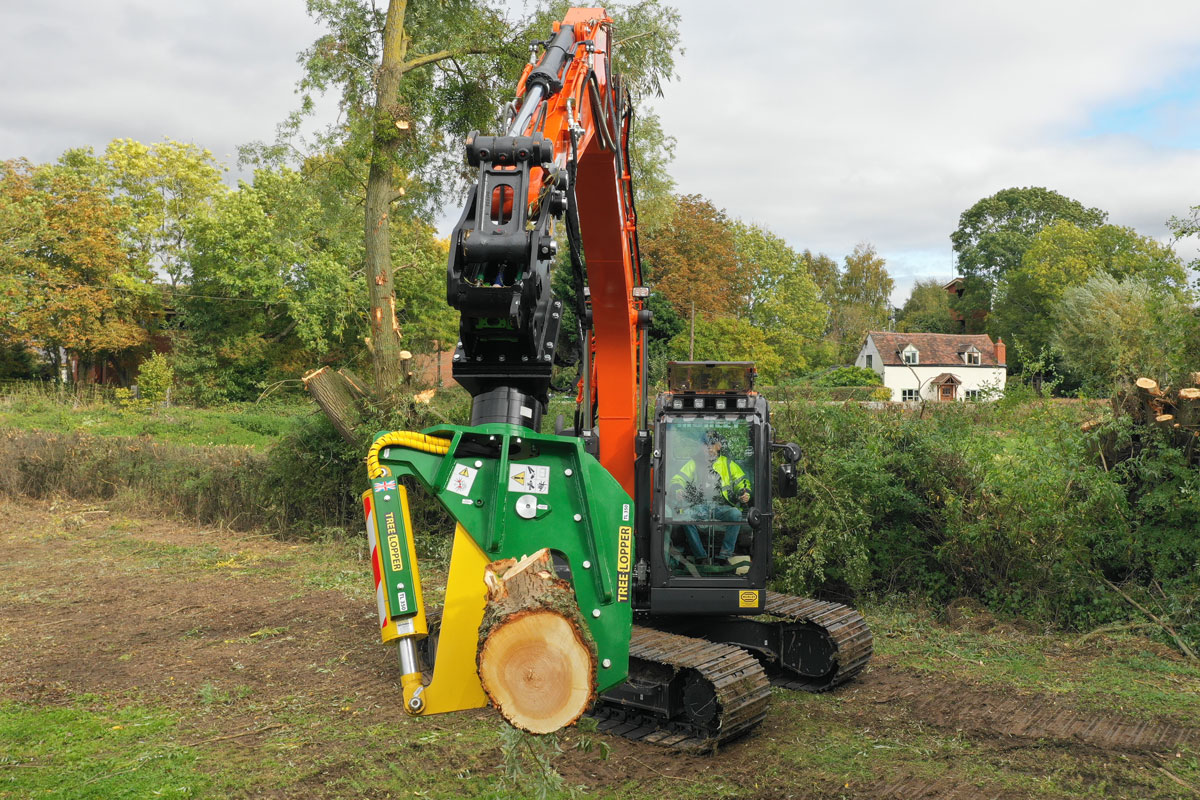

Tree Lopper is a range of tree shears designed to suit excavators from 1.5 tonnes to 14 tonnes. Manufactured from high tensile steel with a single cutting blade, the unique serrated fixed jaw grips the tree during the cutting process and enables the shear to be used for the rehandling and processing of cut timber. Tree Lopper will cut or trim trees up to 400mm diameter in one pass and operates off the excavators standard double acting hydraulic circuit.

MODELS & TECH SPEC

Model Carrier Weight (t) Weight (kg) Oil Flow (l/m) Oil Pressure (bar) Rotation (°) Maximum Cut Diameter (mm) Dimensions H x W x D (mm)
TL150 1.5 – 4 140 – 215 25 180 – 210 360 200 320 x 730 x 1030
TL250 3.5 – 8 270 – 360 45 180 – 220 360 300 350 x 900 x 1450
TL350 7 – 14 520 – 625 60 200 – 230 360 400 430 x 1150 x 1700

GET THE BROCHURE

Here
