Mini Forest Mulcher

NO COMPROMISE

THE CONCEPT

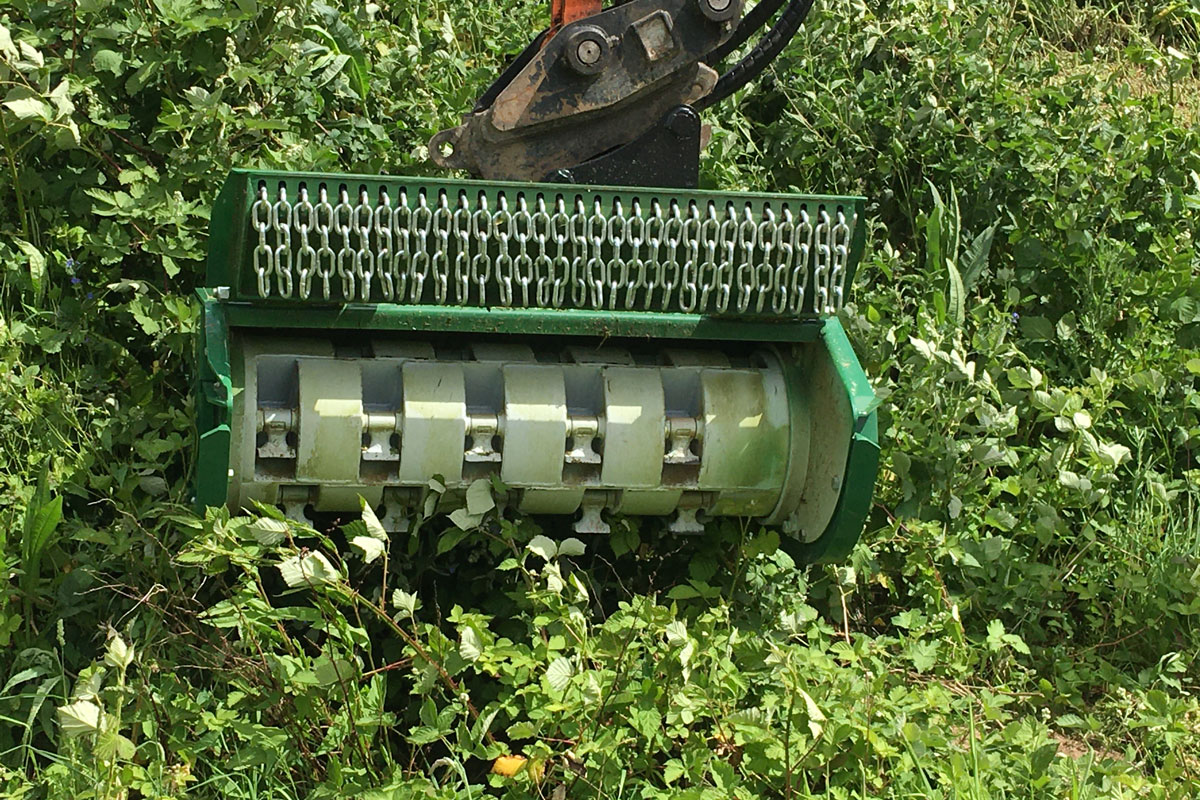

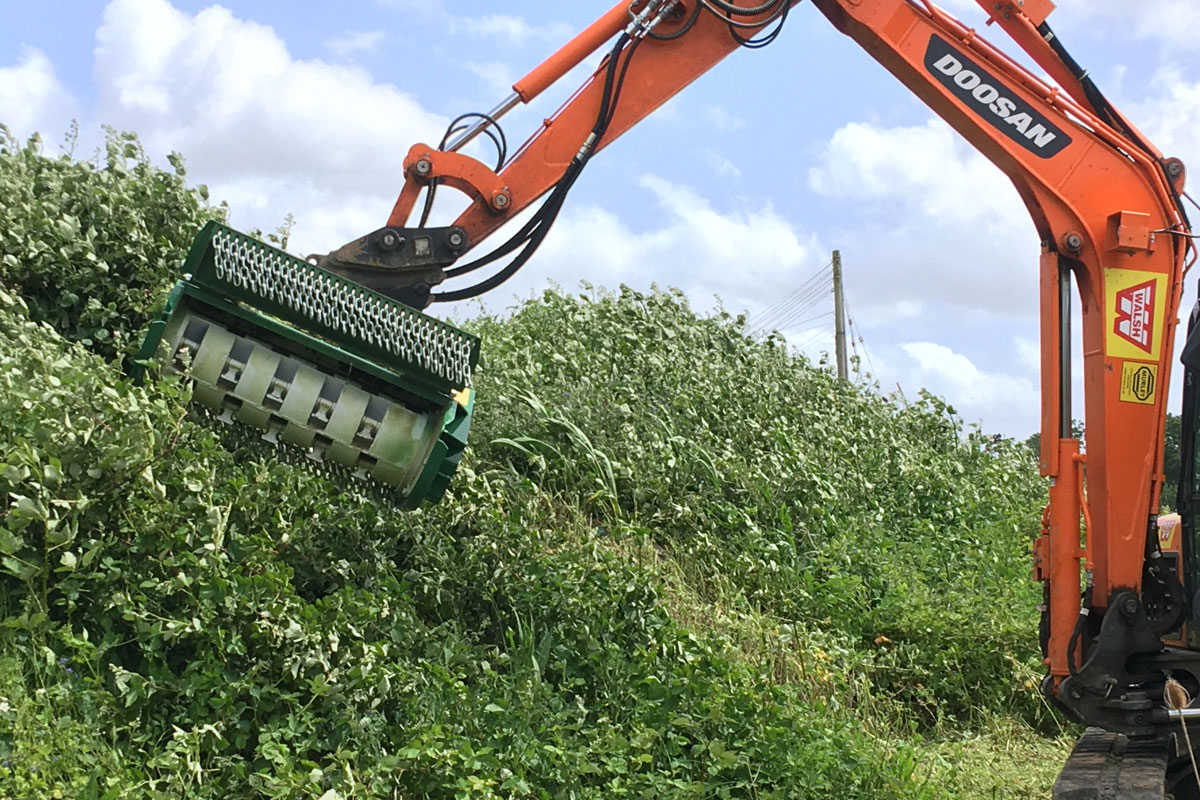

The Mini Forest Mulcher is a range of mulchers suitable for excavators in the 2.5t to 12t category. This versatile mulcher is a good all rounder and can cut any material up to 200mm in diameter. It can be configured for excavators, loaders, skid steers and tractors and has models with fixed tool rotors. Designed and manufactured in Italy by OSMA Sas, Mini Forest is only available in the UK through Exac-One Ltd.

Designed and manufactured in Italy

By OSMA SaS

To suit a range of excavators

From 2.5 to 12 tonnes

Manufactured using high grade steel

Weldox 700 for the casing & Hardox 400 for the frame

Cut grass and vegetation

Up to 200mm in diameter

Piston motor

For optimum power

Choice of teeth

Cobra (Sharp Teeth) or Q Tungsten Carbide

Hydraulic operation of front cover

For speed and safety

Multiple carrier options

Can be configured for excavators, skidsteers, loaders or tractors

Supplied With

Mounting bracket

Hoses excluding QR fittings

Additional Options

Flow control valve

Diverter valve kit

Manual front cover

Hydraulic Requirements

2 x Single acting circuit

or

1 x Single acting circuit + diverter valve kit

MODELS & TECH SPEC

Model Carrier Weight (t) Weight (kg) Oil Flow (l/m) Oil Pressure (bar) Max Cut Width (mm) Max Cut Diameter (mm) Rotor Type
TF80 XL 5 – 6.5 375 60 – 70 220 – 250 800 150 Drum
TF100 XL 5 – 7.5 414 60 – 70 220 – 250 1000 150 Drum
TF100 L 7 – 12 650 90 – 100 220 – 250 1050 150 Drum
TF130 L 9 – 12 790 90 – 100 220 – 250 1300 150 Drum
TFK70 2.5 – 5 285 30 220 – 250 700 150 Fixed Tool
TFK90 4 – 6 335 45 220 – 250 900 150 Fixed Tool
TF80XL Q 5 – 6.5 525 50 – 75 220 – 250 800 150 Fixed Tool Q
TF100XL Q 6 – 9 575 60 – 80 220 – 250 1000 150 Fixed Tool Q
TF100L Q 8 – 12 765 80 – 100 220 – 250 1000 200 Fixed Tool Q
TF130L Q 9 – 12 830 90 – 100 220 – 250 1300 200 Fixed Tool Q
