Mini Mower
NO COMPROMISE
THE CONCEPT

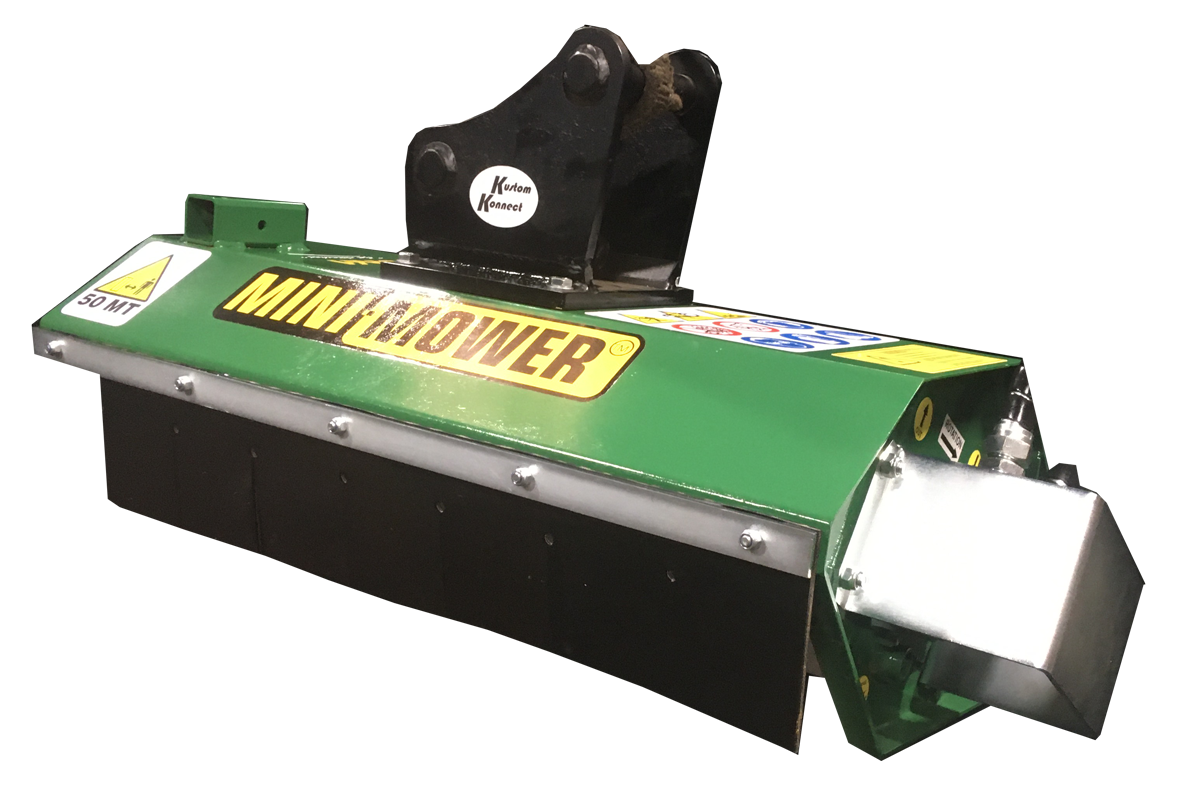

The Mini Mower is a range of mowers suitable for excavators in the 1t to 10t category. This versatile mower is best suited for grass and vegetation clearance and can cut material up to 70mm in diameter. It can be configured for excavators, loaders and skid steers and some models offer a choice of rotors and cutting tools. Designed and manufactured in Italy by OSMA Sas, Mini Mower is only available in the UK through Exac-One Ltd.
MODELS & TECH SPEC
| Model | Carrier Weight (t) | Weight (kg) | Oil Flow (l/m) | Oil Pressure (bar) | Max Cut Width (mm) | Max Cut Diameter (mm) |
|---|---|---|---|---|---|---|
| TE60 DXL | 1 – 2 | 70 | 20 – 30 | 160 | 600 | 10 |
| TE80 DXL | 1.5 – 2.5 | 85 | 20 – 30 | 160 | 800 | 10 |
| TE80 DL | 2 – 3.5 | 100 | 30 – 45 | 170 | 800 | 50 |
| TE100 DL | 2.5 – 4 | 120 | 30 – 50 | 170 | 1000 | 50 |
| TE80 DP | 2.5 – 5 | 170 | 30 – 50 | 180 | 800 | 50 |
| TE100 DP | 2.5 – 5 | 195 | 40 – 60 | 180 | 1000 | 50 |
| TE120 DP | 4 – 8 | 230 | 50 – 70 | 180 | 1200 | 50 |
| TE100 CL | 6 – 10 | 315 | 60 – 70 | 190 – 200 | 1050 | 70 |
| TE120 CL | 6 – 10 | 345 | 60 – 70 | 190 – 200 | 1250 | 70 |
