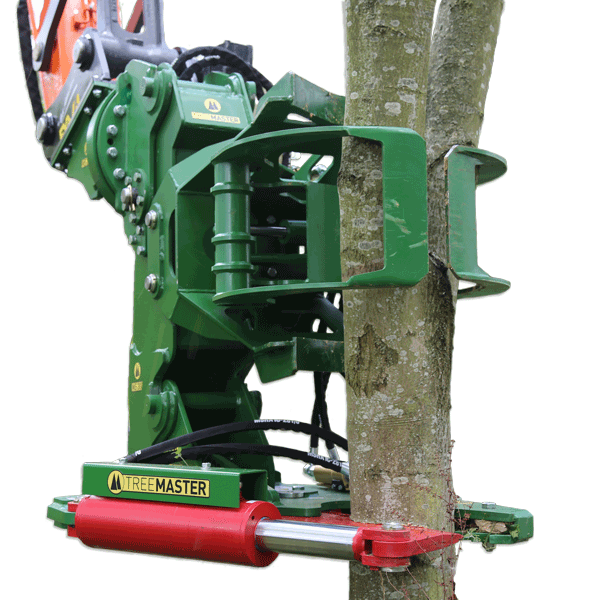

TreeMaster GS

Grapple Saw

THE CONCEPT

The Grapple Saw range combines a grab and pivoting saw cassette using industry standard saw components and high grade steels for maximum strength and low weight. 3 different models available with a max cut diameter up to 1m.

Designed and manufactured in the UK

By Exac-One

To suit a range of excavators

Manufactured using high grade steel

For maximum strength and low weight

Pivoting Saw cassette

Minimises risk of chain snagging

Industry standard saw components

Ensures reliability and availability

'Bar Safe' indicator

360 degree continuous rotation

Cut or trim standing trees

Up to 1000mm diameter

Cut fallen trees

Into firewood

Supplied With

Mounting bracket & hydraulic hoses
(without couplings)

Additional Options

Diverter kit

Hydraulic Requirements

(minimum) 1 x single-acting auxiliary circuit, 1 x double-acting auxiliary circuit

MODELS & TECH SPEC

Model	Max cut dia (mm)	Shear Weight (kg)	Rotation (°)	Saw Motor (std)	Chain (std)	Oil Flow (l/min)	Max Pressure (Bar)	Bar	Chain Lubrication	Chain Tensioner	Grab Opening max (mm)	Grab Closing min (mm)
GS450/200	500	420	360	F11 – 06	404″-1.6mm	40min-50max	250	540-640	Auto	fast mechanical	1340	80
GS700/300	700	790	360	F11-14/19	404″-2mm (3/4 option)	100min-160max	250	820-900	Auto	fast mechanical	1550	100
GS1000/400	1000	950	360	F12-30	3/4	130min-160max	250	915-1016	Auto	fast mechanical	1805	120
