Kerb Grip

WE’VE GOT YOUR BACK

THE CONCEPT

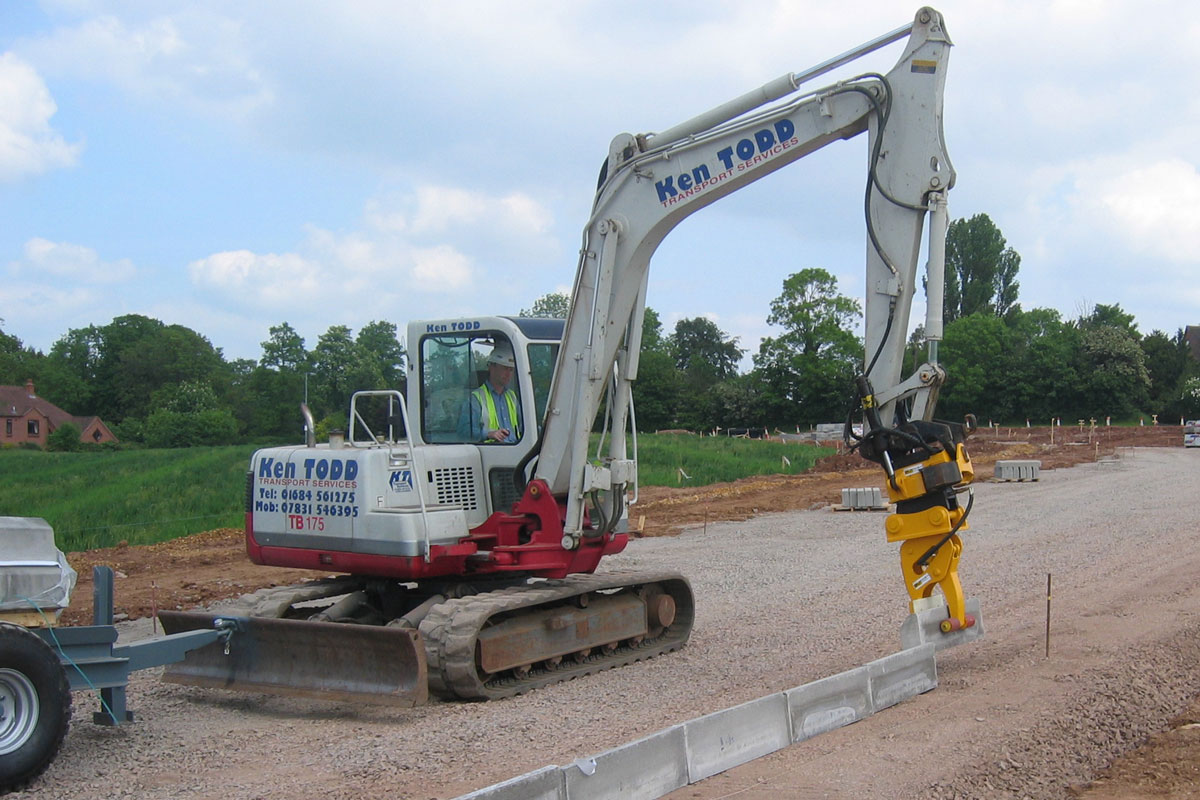

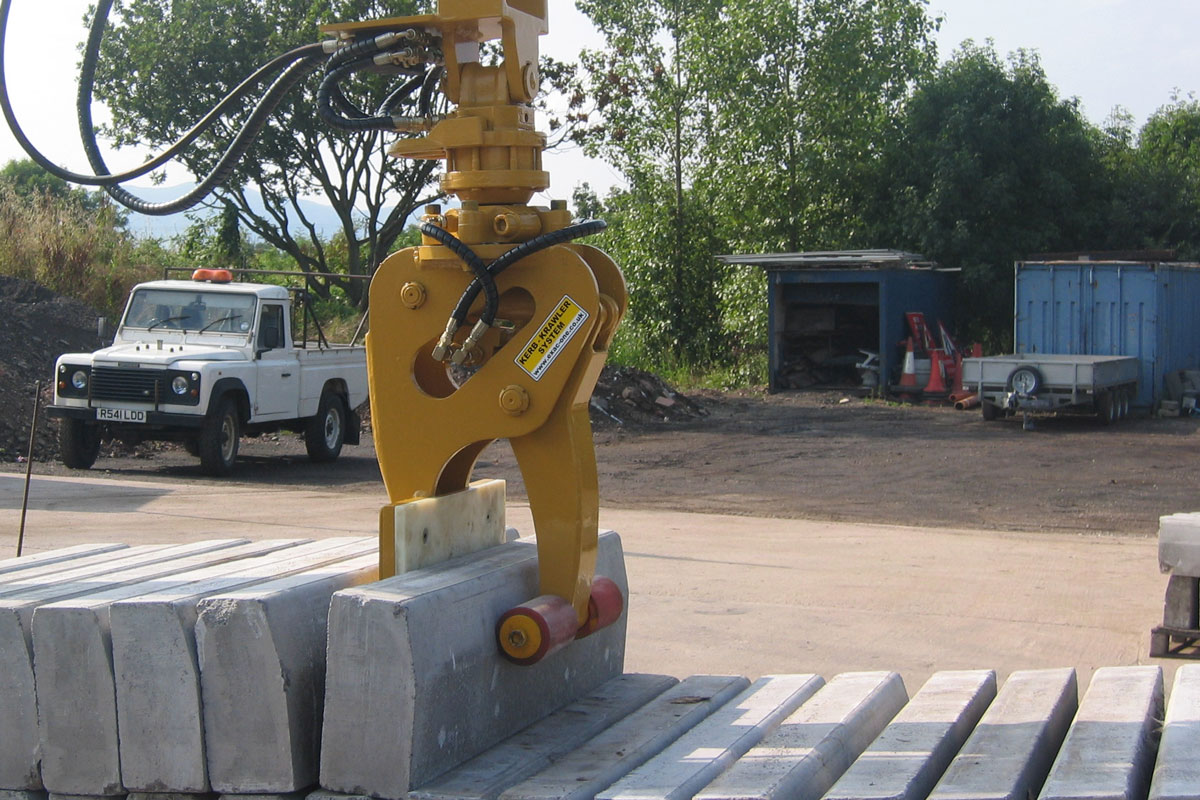

Kerb Grip is a range of grabs designed specifically for handling kerb stones and will suit excavators from 1.5 – 14 tonnes. The unique jaw design enables the excavator operator to grab the kerbs directly from the pack, with no damage to the kerb surface, and to place them to a line, onto the kerb race without manual assistance. Kerb Grip was designed to handle a wide range of kerb types and is available with a number of different rotator options.

Designed in the UK

By Exac-One and manufactured in Italy by Idrobenne

To suit a range of excavators

From 1.5 to 4 tonnes

Manufactured using high grade steel

For exceptional durability

Modular design

Use it stand alone or with a manual or hydraulic rotator to suit your needs

Fixed jaw

Has nylon blade to separate kerbs in the pack

Pick and place your kerb stone

From the pack to the race

Check valve on ram

For additional safety

Designed for safety

Eliminates the need for the manual handling of kerb stones

Supplied With

N/A

Additional Options

Diverter kit

Mechanical or hydraulic rotator

Direct, single pin or quick hitch mounting options

Hydraulic Requirements

1 x Double acting circuit

MODELS & TECH SPEC

Model Carrier Weight (t) Weight (kg) Oil Flow (l/m) Oil Pressure (bar) Dimensions H x W (mm) Jaw Opening (mm)
KSG80 1.5 – 10 55 20 – 40 200 600 x 400 0 – 165
KSG400 3 – 14 80 20 – 50 200 625 x 400 0 – 400
